| System |
4th generation Intel® Core™ i5 processor 4300U vPro™ 1.9GHz
Up to 8GB DDR3L 1600MHz Memory
120GB mSATA SSD (option 240GB) Storage
|
| Operating System |
Standard:
• Windows 7 Professional 64-bit
Optional:
• Windows Embedded 8.1 Industry 64-bit
• Windows Embedded 8 Standard 64-bit
• Windows Embedded Standard 7 64-bit |
| Display |
10.1-inch 1920 x 1200 WUXGA; 1000 nit sunlight readable
10-point capacitive touch supports glove touch, water rejection, palm rejection, 2mm hard tip stylus
Digitizer
Gorilla Glass3 |

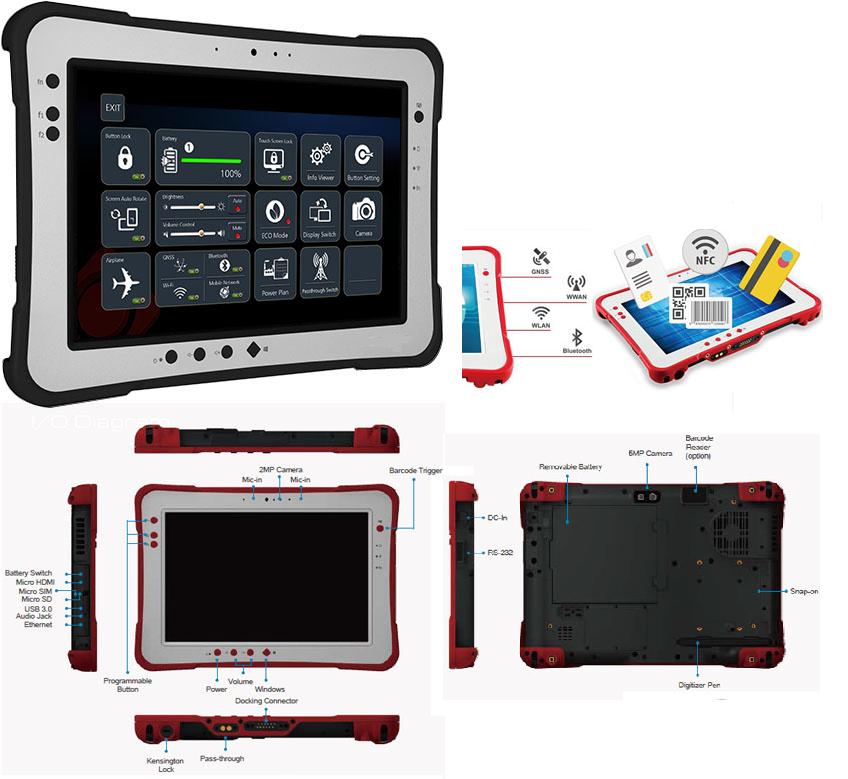

| I/O Interface |
USB 3.0 type A x 1
Gigabit Ethernet (RJ-45 ) x 1
RS-232 x 1 (option for USB 2.0 type A)
Micro SD slot x 1, Micro SIM slot x 1, Micro HDMI x 1
Audio jack (headphone/microphone combo) x 1
Speaker & microphone
Dual RF pass-through connector for WLAN, GNSS, WWAN
12-pin docking connector x 1 |
| RF |
802.11 a/b/g/n/ac
Bluetooth V4.0
GNSS (GPS/GLONASS/BeiDou)
Optional 3.5G or 4G LTE |
| Webcam |
Front: 2MP
Rear: 5MP with auto focus and LED flash |
| Data Capture |
2D barcode reader (option)
NFC (snap-on, by request)
Smart card reader - CAC (snap-on, by request)
Magnetic stripe reader (snap-on, by request) |
| Durability |
Shock & vibration : MIL-STD-810G
Drop : 5 feet drop
IP65 resistant design
Operating temperature : -20° C to +60° C |
| Battery |
Standard : 4500 mAh, 10.8V, hot swappable; battery operation* : 6 hours
Extended (option) : 9000 mAh, 10.8V, hot swappable; battery operation* : 11 hours
*The listed battery life is based on MobileMark 2012® media mode testing. |
| Security |
TPM1.2 |
| Control Button |
Programmable button x 3
Power, volume, Windows button
Barcode trigger x 1 |
| LED Indicator |
Power on/off
Battery full/charging/low
Wi-Fi on/off
Fn on/off |
| Sensor |
Gyroscope, G-sensor, E-compass, light sensor |
| Power Adapter |
AC 100V~240V, 50~60Hz Input; 19VDC@3.42A, 65W |
| Environment |
Operating temperature -20°C to 60°C
Storage temperature -30°C to +70°C
Humidity 5%~95% |
| Software |
DsahON |
| In-box Accessory |
Digitizer pen
Handle
Hand strap
Shoulder strap
Power adapter |
| Weight |
1.36 kg (3.0 lbs) |
| Dimensions |
280(W)mm x 195(H)mm x 23(D)mm |
